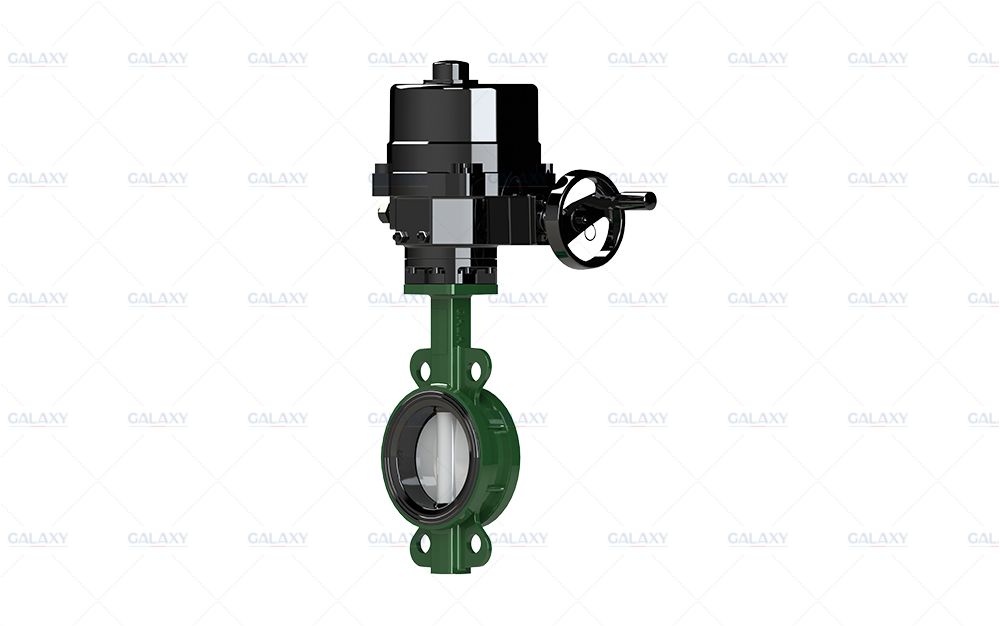

Wafer Butterfly Valve

Concentric Wafer Soft Seated Butterfly Valve

Product Figure No.: Fig. 2349

Product Size: DN50~DN600

Product Pressure: PN10/PN16

Product Standard: EN 593 / MSS SP-67 / API 609 / ISO 5752 / BS 5155

Flange Connection Standard: ASME Class 125/ Class 150 / BS EN1092-2 PN10 / PN16

Product Details

Product Features:

1. Completely sealed in both directions - airtight grade.

2. Valve plate has a precision-machined spherical sealing surface, which has low torque and long service life.

3. Three self-lubricating bushings on the valve stem prevent the valve stem from deflecting.

4. Scientific design with excellent flow characteristics and low-pressure loss.

5. The valve has passed the sulfur dioxide corrosion resistance test and salt spray test.

6. Four flange positioning holes ensure the correct position of the valve during installation.

7. Can be installed in any direction.

8. Maintenance-free.

9. Silicone-free valves can be selected for special industries

Look forward to hearing from you

Welcome friends and customers at home and abroad to cooperate sincerely and create brilliance together!

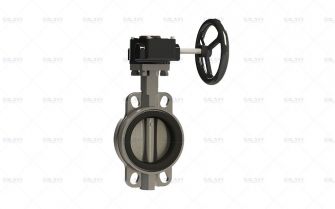

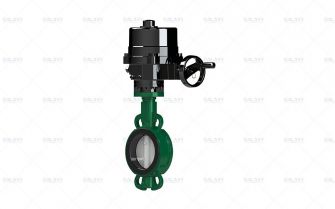

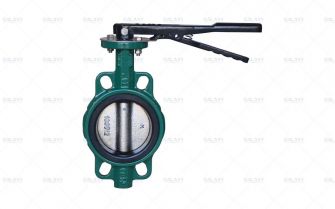

Related Products
